OPUS HE power systems offer a robust, free air convection cooled, N+1 redundant backup power solution for critical infrastructure applications such as transmission and distribution substations, process industries, railway signaling and substations, and telecommunications.
-
Efficiency up to 97%
-
Natural convection cooled – fan free
-
Standard output voltages: 24, 48, 60, 110, 125 and 220 VDC
-
Max 10 kW output power, 7.5 kW for 24 VDC models
-
N+1 redundancy
-
Battery connection: 1 string with full current
-
Options: Battery LVD, temperature sensor, wall mounting & IP21 cover kit
-
EMC ratings:
Rack: EN61439-1, EN61439-2
Rectifiers: EN 61000-6-1 / -2 / -3 / -4 / -5
EN50121-4/-5 Rail, ETSI EN 300386 (48/60V) -
Safety ratings:
Rack: EN61439-1, EN61439-2
Rectifiers: EN 62368-1, EN 50124-1 rail
-
Critical infrastructure
-
Power transmission substations
-
Power distribution substations
-
Railway signaling and substations
-
Process industries
-
Telecommunications
detailed description
Description
The OPUS HE system consists of MHE rectifiers, VIDI2 controllers, connections for mains and battery, and load distribution MCB. Offered in a 19″ 12U rack, the system delivers a maximum 10 kW output power at 48, 60, 110, 125 and 200 VDC, and 7.5 kW at 24 VDC outputs.
The 19″ 12U rack system provides slots for a maximum of five (5) MHE rectifier modules. Load distribution configuration of MCB quantity and current ratings can be configured at time of order. Wall mounting, IP21 cover kit, temperature sensor and BLVD are available as options.
- Efficiency up to 97%
Macro industries applications
Models
List of models
model number
Power Out Max (kW)
Input Voltage (VAC)
Output Voltage Range (VDC)
Output Current Max (A)
Cooling
-
- model number
- OPUS HE 24-7.5 R12U F
- Power Out Max (kW)
- 7.5
- Input Voltage (VAC)
- 85 - 300
- Output Voltage Range (VDC)
- 21 - 33
- Output Current Max (A)
- 312.5
- Cooling
- Natural Convection
- Max # Outputs
- 1
- Module Positions
- 5
- V1 Out Min (V)
- 21
- V1 Out Nom (V)
- 24
- V1 Out Max (V)
- 33
- Efficiency Rating (%)
- 97
- Operating Altitude (m)
- 2000
- Operating temperature range
- -25 to +60 ℃
- IP Rating
- IP20
- Control & Monitoring
- VIDI+ Controller
- Safety
- EN61439-1, EN61439-2; Railway EN51024-1
-
- model number
- OPUS HE 48-10.0 R12U P
- Power Out Max (kW)
- 10.0
- Input Voltage (VAC)
- 85 - 300
- Output Voltage Range (VDC)
- 42 - 59
- Output Current Max (A)
- 208.5
- Cooling
- Natural Convection
- Max # Outputs
- 1
- Module Positions
- 5
- V1 Out Min (V)
- 42
- V1 Out Nom (V)
- 48
- V1 Out Max (V)
- 59
- Efficiency Rating (%)
- 97
- Operating Altitude (m)
- 2000
- Operating temperature range
- -25 to +60 ℃
- IP Rating
- IP20
- Control & Monitoring
- VIDI+ Controller
- Safety
- EN/IEC 62368-1, EN 50124-1 Railway
-
- model number
- OPUS HE 60-10.0 R12U P
- Power Out Max (kW)
- 10
- Input Voltage (VAC)
- 85 - 300
- Output Voltage Range (VDC)
- 51 - 72
- Output Current Max (A)
- 166.7
- Cooling
- Natural Convection
- Max # Outputs
- 1
- Module Positions
- 5
- V1 Out Min (V)
- 51
- V1 Out Nom (V)
- 60
- V1 Out Max (V)
- 72
- Efficiency Rating (%)
- 97
- Operating Altitude (m)
- 2000
- Operating temperature range
- -25 to +60 ℃
- IP Rating
- IP20
- Control & Monitoring
- VIDI+ Controller
- Safety
- EN61439-1, EN61439-2; Railway EN51024-1
-
- model number
- OPUS HE 110-10.0 R12U F
- Power Out Max (kW)
- 10.0
- Input Voltage (VAC)
- 85 - 300
- Output Voltage Range (VDC)
- 90 - 150
- Output Current Max (A)
- 92.5
- Cooling
- Natural Convection
- Max # Outputs
- 1
- Module Positions
- 5
- V1 Out Min (V)
- 90
- V1 Out Nom (V)
- 110
- V1 Out Max (V)
- 150
- Efficiency Rating (%)
- 97
- Operating Altitude (m)
- 2000
- Operating temperature range
- -25 to +60 ℃
- IP Rating
- IP20
- Control & Monitoring
- VIDI+ Controller
- Safety
- EN/IEC 62368-1, EN 50124-1 Railway
-
- model number
- OPUS HE 125-10.0 R12U F
- Power Out Max (kW)
- 10
- Input Voltage (VAC)
- 85 - 300
- Output Voltage Range (VDC)
- 100 - 160
- Output Current Max (A)
- 83.3
- Cooling
- Natural Convection
- Max # Outputs
- 1
- Module Positions
- 5
- V1 Out Min (V)
- 100
- V1 Out Nom (V)
- 125
- V1 Out Max (V)
- 160
- Efficiency Rating (%)
- 97
- Operating Altitude (m)
- 2000
- Operating temperature range
- -25 to +60 ℃
- IP Rating
- IP20
- Control & Monitoring
- VIDI+ Controller
- Safety
- EN61439-1, EN61439-2; Railway EN51024-1
-
- model number
- OPUS HE 220-10.0 R12U F
- Power Out Max (kW)
- 10.0
- Input Voltage (VAC)
- 85 - 300
- Output Voltage Range (VDC)
- 178 - 280
- Output Current Max (A)
- 46.3
- Cooling
- Natural Convection
- Max # Outputs
- 1
- Module Positions
- 5
- V1 Out Min (V)
- 178
- V1 Out Nom (V)
- 220
- V1 Out Max (V)
- 280
- Efficiency Rating (%)
- 97
- Operating Altitude (m)
- 2000
- Operating temperature range
- -25 to +60 ℃
- IP Rating
- IP20
- Control & Monitoring
- VIDI+ Controller
- Safety
- EN61439-1, EN61439-2; Railway EN51024-1
Accessories

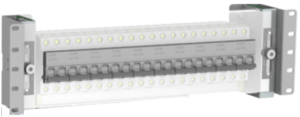

19″ Load Distribution panels
- Load panels for loacal panel builder
- 19″ rack and 19″ MCB load distribution panels
- 10 x 2-pole MCB & FMU load monitoring per panel

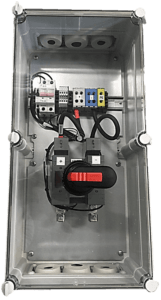

OPUS Battery Fuse Box
- Wall Mountable Fuse Box for Battery Installations
- Switch Fuse Protection
- Configurable Fuse Link
- Up to 125A

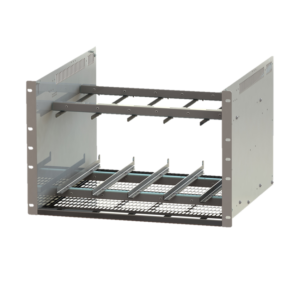

OPUS HE R5U SLAVE RACK
- Supports up to five (5) MHE rectifiers
- Mechanical housing only – no wiring
- 19″ 5U Rack-mountable
- Compatible with OPUS HE 5U systems
OPUS Battery Cabinet For Front Terminal Batteries
- 4 Battery shelves 320 x 530 x 595 mm
- User terminals 35 mm (8 pcs)
- Cable entry from top, neoprene cable glands (optional bottom cable entry)
- Adjustable legs
OPUS IC Battery Cabinets with Switch Fuse Protection
- Battery shelves for up to 4 x 48V/190Ah batteries
- Switch fuse protected battery strings (4 x 125A NH00 – fuse monitoring)
- Cable entry from top
- Ventilation output on the top
- Adjustable legs
- Strong welded structure
- Top lifting eyes
